Radiochemical and analytical aspects of inter-institutional quality control measurements on radiopharmaceuticals
EJNMMI Radiopharmacy and Chemistry volume 4, Article number: 3 (2019)
Clinically applied radiopharmaceuticals have to meet quality release criteria like a high radiochemical yield and radiochemical purity. Many radiopharmaceuticals do not have marketing authorization and have no dedicated monograph within the European pharmacopeia, therefore general monographs on quality control have to be applied for clinical applications. These criteria require standardization and validation in labeling and preparation, including QC measurements according to well-defined standard operation procedures. QC measurements however, are often based on detection techniques specific for a certain LC-system. Multi-institutional research and development of new radiopharmaceuticals lead to an increase in multicenter trials. Although all institutes’ radiopharmacies are using the same standardized labeling and operation procedures, they often use different LC and radiodetection systems. Here we present a comparison of QC assessments for 3 radiopharmaceuticals with focus on the interpretation of chromatograms, data-output and potential differences in local practical performances of QC on (U)HPLC.
QC assessments for [111In]In-CCK, [68Ga]Ga-Bombesin and [177Lu]Lu-PSMA analogs were compared. Two of the radiopharmaceutical QC assessments were also applied in other institutes using their own HPLC-systems and concordant software. Data from the HPLC-injections and measurements is processed and summarized in chromatograms, based on a variety of smoothing algorithms for which different software programs are applied. Described radiopeptides were labeled and analyzed according their standardized labeling and operation procedures.

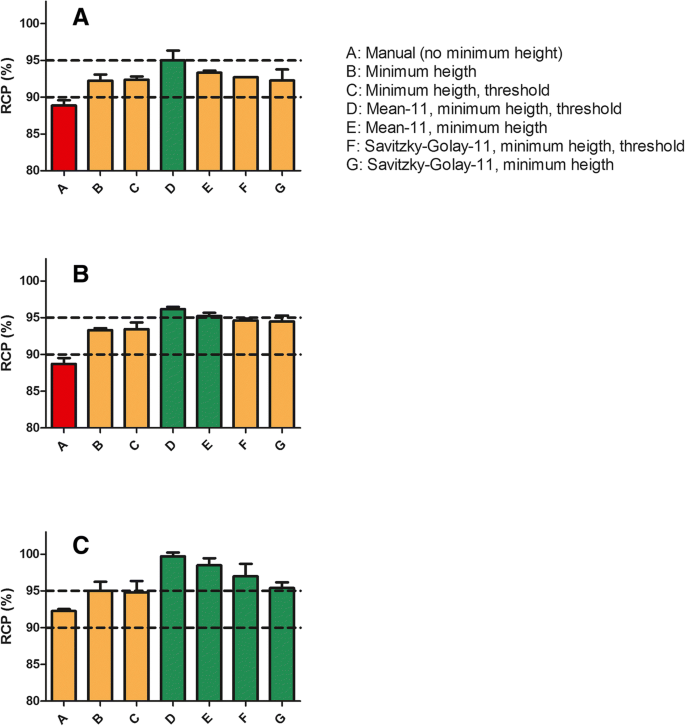

Integration of main peaks on chromatograms resulted in a range of RCP, depending on the smoothing algorithm used. [111In]In-CCK(A), 68Ga-Bombesin(B) and [177Lu]Lu-PSMA(C) analogs had a RCP range of 88%–96%(A), 89–95%(B) and 92–99%(C) respectively. Important factors affecting final RCP value were site specific background radiation-levels, intrinsic system properties such as noise and sensitivity, personal interpretation e.g. peak-tailing and smoothing algorithms.
Measurement of RCP shows a strong method- and system-dependency, even when parameters are validated, standardized and SOP are followed. Release criteria are frequently based on RCP data from one central location. The lack of inter inter institutional validation and standardization in RCP determination makes the results therefore rather arbitrary. For multicenter trials, we recommend to compare locally determined RCP under validated and standardized conditions of in-line activity detection between institutes for each radiopharmaceutical.
In Nuclear Medicine, radiopharmaceutical Quality Control (QC) nowadays have to meet release criteria (Decristoforo et al. 2017; Elsinga et al. 2010) like a high radiochemical yield (RCY) and radiochemical purity (RCP). RCY is defined as: The ratio of the activity of a specified radionuclide of a specified element after its radiochemical separation or labeling and its activity originally present in the substance undergoing the radiochemical separation or labeling. RCP is defined as the ratio of the activity of a radionuclide in a stated chemical species in a material over the total activity of all species containing that radionuclide in this material (Coenen et al. 2018). RCP measurements are based on specific detection techniques with liquid chromatography (LC). For multicenter trial, validation, standardization and coordination of the release criteria is required, especially because of the use of a variety of (U)HPLC systems. Therefore, in this manuscript we would like to indicate systemic variations in detection, data interpretation and processing in more detail. Some practical aspects are included for specific radiopharmaceuticals; like, limit of detection, threshold and interpretation of impurities. For each subject we explain the needs and the difficulties separately. This overview gives practical examples and should lead to better understanding and is a recommendation for a proper comparison of RCP between different institutes.
In-line detection of activity/measurement of activity in combination with liquid chromatography
Many data output in radiopharmacy is commonly based on detection of radioactivity, which is usually measured with an in-line detector in liquid chromatography. In-line detection is described in general monographs in the Ph. Eur. 2.2.66 (European Pharmacopeia 9.0 2017a). Briefly, a sample containing a radiopharmaceutical is diluted (if necessary) and injected onto a chromatography system with specified volume, conditions and column as written in accordant standard operating procedure (SOP). Important QC parameters for in-line detection on LC are limit of detection (LOD), limit of quantification (LOQ) and detector linearity (Guide for the elaboration of monographs on radiopharmaceutical preparations 2018). Numerous more parameters influence the activity quantification such as the detector’s crystal dimensions, inner diameter and length of tubing (flow cell) used, position of tubing with respect to crystal (in front of or through crystal) and distance of tubing with respect to crystal. Counting efficiency can be increased by coiling of tubing, however this will reduce peak separation. Overall there will be a balance between sensitivity, separation and resolution (European Pharmacopeia 9.0 2017a).
RCP measurements of radiopharmaceuticals are based on radioactivity detection by detectors and adhering equipment and software, quite often of different brands. Specific detectors such as GABI, MIRA (Raytest), osprey (Canberra), Bpad (Brightspect) and Flow-RAM (LABLOGIC) are used. Moreover, detection is performed by specific scintillator crystals i.e. CeBr, NaI and BGO (Bi4Ge3O12).
Important parameters which can influence radioactivity detection for the in-line measurement and thus have to be validated and standardized are count rates and efficiency, yield-differences for specific energies (keV), response time electronics, hardware/software sampling rates, intrinsic noise, distance between radiodetector and sample, flow cell length, internal diameter and volume. More details and specific influence on different parameters are described by de Zanger et al. (Manuscript in preparation).
Settings for validation and optimal measuring of RCP
Radiochemical yield is the most important, and the easiest to measure, validate and standardize. In development state of radiopharmaceuticals, RCP is as important but much more difficult to validate and standardize. Determination of the RCP is a quantitative determination of individual impurities. Important parameters here are threshold settings and conditions for integration of peak areas (processing method).To process such radiochromatogram profiles the disregard limit is dependent on the method and related to the LOD and LOQ which will be more explained later. Identification of the different radiopharmaceuticals and related impurities on radiochromatogram profiles is based on retention times of the peak. Peaks areas are used to quantify impurities and are obtained by direct integration of the detector signal using commercially available software.
RCP is well defined in general Ph. Eur. ((chapter 5, Radiopharmaceutical preparations)) (European Pharmacopeia 9.0 2017a; European Pharmacopeia 9.0 2017b) and is as mentioned before, one of the release criteria of radiopharmaceuticals. Therefore it is important to have a validated separation method, which has optimal separation between different (radio)chemical forms (radioactive impurities) other than the original intact labeled radiopharmaceutical.
Important parameters which also have to be considered are accuracy, precision (repeatability and intermediate precision), specificity, linearity and range. These items are well defined in “Guide for the elaboration of monographs on radiopharmaceutical preparation” (chapter 2, EDQM 2018) (Guide for the elaboration of monographs on radiopharmaceutical preparations 2018).
To ensure accuracy in determination of RCP, sample could be spiked by i.e. adding known amounts of impurities to a sample.
Radiochemical impurities may originate from:
Incomplete preparative separation;
Chemical changes of the intended molecule during storage
Individual monographs often include limits of relevant potential radiochemical impurities, including isomers. For multicenter clinical trials, before a specific radiopharmaceutical can be applied clinically, methods of radiolabeling and concordant QC to be performed has to be validated in a radiopharmacy. Also reproducibility which expresses the precision between laboratories are of importance specifically for collaborative studies. General methodology of validation is described in ICH Q2 (R1).
Smoothing of HPLC data
Despite all difference in hardware there are also multiple options for smoothing the data. This could be done either by changing the sampling frequency (Hz) or by using a specific smoothing algorithm afterwards. (i.e. mean or Savitzky-Golay). Savitzky and Golay (1964) is a type of smoothing which can be applied in a set of digital data points. Smoothing can be applied to increase signal-to-noise ratio without distorting the signal. Data points will be fit with a low degree polynomial by the method of linear least squares. The mean smoothing is a more basic type of smoothing and is simply based on the mean of the points taking into account. Here we made and comparison of these specific algorithms to show influences in RCP outcomes (see Figs. 3, 4, 5).
Interpretation of chromatograms
Background correction and threshold
We also investigated the influence of setting a threshold. Threshold specifies the liftoff and touchdown value (minimum rate of change of the detector signal) for peak detection (Fig. 1).
Limit of detection (LOD) and limit of quantification (LOQ)
As defined in Ph. Eur. 2.2.66. (European Pharmacopeia 9.0 2017a): LOD is an estimation of the background signal and its standard deviation, The LOD is usual considered to be background plus 3 times the standard deviation of the background signal. This also counts for LOQ, this value is used particularly for the determination of impurities. Practically the LOQ is usually considered to be background signal plus 10 times the standard deviation of the background signal.
Materials and methods
Radiolabeling for three radiopharmaceuticals and QC were performed according accordant SOP, briefly:
DOTA-Bombesin containing kit (25 μg) was connected to a 1110 MBq 68Ga generator (ITG, Germany) and 5 mL of 0.05 M HCl was eluted into the vial and placed in a dry bath for 20 min at 85 °C. After labeling vial was taken out and cooled down to room temperature (RT) for 10 min. For HPLC QC, aliquot was taken by 1 mL syringe and added to a 100 μL DPTA solution.
DOTA-CCK containing kit (50 μg) was defrosted and [111In]InCl3 in 0.1 M HCl, (Mallinckrodt Medical, The Netherlands) was added. ~ 240 MBq (< 0.5 mL) was placed in a dry bath for 20 min at 90 °C. After labeling vial was taken out and cooled down to RT for 10 min. For HPLC QC aliquot was taken by 1 mL syringe and added to a 100 μL DPTA solution.
100 μg DOTA-PSMA was dissolved in 0.5 mL containing 4 mg gentisic acid, subsequently 6 mL of 0.04 M acetic acid was used to dissolve 13 mg of sodium ascorbate and 31 mg of sodium acetate-tri hydrate. Two solutions were combined to have a total volume of 6.5 mL. To this solution [177Lu]LuCl3 (80 GBq/mL, AAA/IDB Holland, the Netherlands) was added (4 GBq ~ 50 μL). Labeling was then initiated by heating the vial at 80 °C for 20 min. Labeling was stopped by cooling down the reaction mixture to RT. After labeling, solution containing sodium chloride, DTPA and ethanol was added to the reaction vial (11 mL). This solution was created by adding 1.2 mL of ethanol (≥99%) to the sodium chloride/DTPA solution (10 mL) delivered with the hardware and reagents kit (Scintomics, Germany). For HPLC QC aliquot was taken by 1 mL syringe.
Background correction, LOD, LOQ and threshold
Background activity measurements were performed with the shielded in-line detection system by performing a blanc injection (30 min run) during this run the background signal was recorded. This data resulted in a mean background value. Background value for each radionuclide was measured individually. Energy windows were set on their specific energy for used nuclides. LOD and LOQ of Indium-111, Gallium-68 and Lutetium-177 measured by HPLC-radiodetector (see Table 4, Institute 1) were determined by injecting a known amount of [111In]In, [68Ga]Ga or [177Lu]Lu-labeled DOTA-peptide. Correlation of activity (MBq) vs peak height (μV) was obtained by plotting the data into a graph and a linear regression line was drawn through the point of the values obtained by injection of the different activities (Fig. 2). Based on obtained background values, a threshold of 400 μV was introduced to discriminate between a peak and background signal. As described earlier, here we stated that background signal plus 3 times standard deviation is LOD and 10 times for LOQ.
Smoothing algorithms and RCP outcome
Here we made an overview of two different type of smoothing applied to three different radiopharmaceuticals: [68Ga]Ga-Bombesin, [111In]In-CCK and a [177Lu]Lu-PSMA analog. The two applied smoothing types were (Savitzky and Golay 1964) and mean.
Amount of data points within the smoothing interval were manually defined within the software, over a range of 5–31 data points (Empower3, Waters, Etten-Leur, Netherlands). The radioactive signal sampling rate (using Satin-1 and 2) is 1–2 points per second. Influence of the amount of data points on the obtained RCP was investigated and plotted (Fig. 3).
Obtained RCP results were compared to results from other institutes. In Table 4 an overview is given on the used equipment in each center, with the most important parameters. Results obtained by the three different HPLC systems were compared (legend, Fig. 4). Radiopharmaceuticals were made by using the same labeling SOP.
Background correction, LOD and LOQ
A significant difference in background was measured between used radionuclides (Table 5). Based on the linear equation of lines (Fig. 2), LOD and LOQ were measured and calculated peak heights were transferred into activity units (kBq) (Table 5).
Smoothing algorithms and RCP outcome
A comparison of 3 radiopharmaceuticals, 3 different peptides labeled with 3 different radionuclides was made. Outcomes of all used integration parameters are summarized in Fig. 3a-c. Visual samples are given in Fig. 5a-c. As shown in Fig. 3a-c influence on RCP is depended on amount of data point and as well on type of smoothing used. For Savitszky-Golay, < 12 points dramatically influence RCP outcome. Additionally influence of smoothing on RCP is also dependent on radiopharmaceutical, this is highly likely dependent on peak shape (Fig. 5a-c).
In-line detection of activity/measurement of activity in combination with liquid chromatography
In the introduction we gave some examples of equipment used for in-line detection of activity. Many of those detectors and scintillation cristals are in use for specific reasons like high count-rate efficiencies for specific type radionuclide (γ,β,α) or because of detecting specific energies (high vs low energies). Data outcome of different combinations of detectors are often compared to each other without well-defined Quality Assurance / Quality Control (QA/QC) procedures and comparison of these detector systems. Therefore intermediate precision and reproducibility measurements are highly recommended (Guide for the elaboration of monographs on radiopharmaceutical preparations 2018). Overall, when validation is performed in the correct way these phenomena should not occur.
Settings for validation and optimal measuring of RCP
Determination of the RCP is a quantitative determination of individual impurities. Ph. Eur. (chapter 5, Radiopharmaceutical preparations) also states that: “In principle, any method of analytical separation may be used in the determination of RCP” (European Pharmacopeia 9.0 2017b). Moreover, RCP is an arbitrary unit that is defined as the amount of radioactivity measured in the main peak (radiopharmaceutical) vs the total amount of radioactivity injected/measured. Thus, the RCP depends on the ability to measure radioactivity and could be influence by all factors described earlier. Assuming that all factors for proper activity detection are well defined, there are multiple other factors like injection volume, injection matrix, eluent, gradient, flow, temperature etc. which influencing a LC system and therefore the RCP value. Al those factor should be check, validated and standardized and defined in accordant SOP. More effort should be taken to validate and standardize methods between institutes. Therefore we should use the so called intermediate precision which expresses variation within laboratories: different days, analysts equipment and more (Guide for the elaboration of monographs on radiopharmaceutical preparations 2018). For accuracy check between pharmacies, it is common to send around specific standards, so called “ring trial”. These outcomes are gathered and comparison is made. For radiopharmacy there are some difficulties like short half-lifes and radiolysis after labeling. In our arguable opinion, till nowadays there are no proper alternatives. Nevertheless, for comparison of equipment for in-line radioactive detection between pharmacies this procedure could be useful. Sending around a “hot liquid” is desirable. This is a ready to use radiopharmaceutical which can be distributed within a certain amount of time, especially developed for i.e. clinical trials.
Smoothing of HPLC data
Smoothing algorithms are widely used to process data outcome. In our opinion, drawback of these smoothing’s is that it can influence background signal and suppress high frequent noise. This makes it more difficult to discriminate a peak from the actual background signal. A signal-to-noise ratio between 3:1 and 2:1 is generally accepted (Guide for the elaboration of monographs on radiopharmaceutical preparations 2018). As shown with our data (Fig. 3), the amount of data points taken into account is crucial, the more points taken the more suppression of the noise and therefore influence on HPLC spectra will increase. For comparison this need to be well defined.
Background correction and threshold
Despite HPLC-detectors are well shielded, during analyses of a specific radiotracer, there will always be additional background, this is energy dependent (KeV) thus also nuclide specific. Therefore we strongly recommend comparison of i.e. HPLC equipment and output even when the same brands are used. A practical example by standardize the shielding and thickness, and geometry of activity measurements.
Interpretation of impurities
According to the Ph. Eur 2.2.46., when a specific impurity contain < 1% of total peak area on the chromatogram, no qualification is needed (European Pharmacopoeia 9.0 2017). Unfortunately, some difficulties arise when using in-line radioactive measurements, for instance interpretation of peak tailing (European Pharmacopoeia 9.0 2017; Zhang et al. 2014). Additionally, radio-peptides will be randomly damaged by radicals. These radicals are mainly formed by the radiolysis of H2O (de Blois et al. 2013; Garrison 1987; Jay-Gerin and Ferradini 2000; Jonah 1995; Slegers and Tilquin 2005; Swiatla-Wojcik and Buxton 2005). Chromatograms of radiolysed radiolabeled products show up as smears because of this. For releasing a product, all signal above minimum peak height, including the hole smear, should be taken into account for determination of final RCP.
As stated in Ph. Eur. individual monographs include limits of relevant potential radiochemical impurities, including isomers. Because many radiopharmaceuticals are not registered, individual monograph of those simply do not exist. In these occasions general monograph have to be applied. Therefore, harmonization and comparison of equipment before starting an multicenter trial becomes even more important with special focus on the comparison of HPLC equipment and i.e. the applied SOP’s but also HPLC-chromatogram processing methods.
Additionally there are two ways of processing data, using the traditional integration or the Apex Track. Our results are based on the traditional integration, to our knowledge for radiopharmaceuticals no comparison is performed between both integrations methods neither specified in any SOP.
Overall recommendations on measurement of RCP for radiopharmaceuticals
As mentioned earlier for accuracy a ring trial is an applied method for comparison of specific measurements between pharmacies. This would be also desirable with radiopharmaceuticals before start of a multicenter trial and obtained values should be compared. In this case the chemical properties of the pharmaceutical are not of importance, only the outcome of measurement of the activity. A difficulty will arise when radiopharmaceuticals with a short lived isotope are used. In this case another isotope with a longer half-life would be more appropriate, then all settings and setups can be compared in advance and the range of outcome can be discussed.
Nowadays vendors have a preference for a so called “hot liquid” (Chakraborty et al. 2018; de Blois et al. 2014). For these specific radiopharmaceutical this has the advantage that many discussions and comparison can be avoided. For standardization, validation and comparison of equipment and procedures, distribution of a hot liquid with longer half-life’s will be a good option, specifically for centers involved in multicenter trials. From this data output, RCP values can be obtained and can be used for comparison.
Many parameters can influence final output of RCP. Measurement of RCP is easily influenced even when many precautions are applied. To be able to compare RCP between institutes, comparison of (U)HPLC-equipment is mandatory. For this the Guide for the elaboration of monographs on radiopharmaceutical preparations is very useful (Guide for the elaboration of monographs on radiopharmaceutical preparations 2018). For multicenter trials, we recommend to compare locally determined RCP under validated and standardized conditions of in-line activity detection between institutes for each radiopharmaceutical. Based on repeatability and intermediate precision for multicenter trials, a locally determined range of RCP as release criteria is preferred and recommended.
Ultra high performance chromatography
European Directorate for Quality of Medicine
Limit of detection
Limit of quantification
Prostate specific membrane antigen
Standard operating procedure
Chakraborty S, Vimalnath KV, Chakravarty R, Sarma HD, Dash A. Multidose formulation of ready-to-use (177)Lu-PSMA-617 in a centralized radiopharmacy set-up. Appl Radiat Isot. 2018;139:91–7.
Coenen HH, Gee AD, Adam M, Antoni G, Cutler CS, Fujibayashi Y, et al. Open letter to journal editors on: International consensus radiochemistry nomenclature guidelines. Am J Nucl Med Mol Imaging. 2018;8(1):70–2.
de Blois E, Chan HS, de Zanger R, Breeman WAP. Effectiveness of quenchers to reduce radiolysis of In-111- or Lu-177-labelled methionine containing gastrin and bombesin analogues. J Labelled Comp Radiopharm. 2013;56:S210–S.
de Blois E, Chan HS, de Zanger R, Konijnenberg M, Breeman WA. Application of single-vial ready-for-use formulation of 111In- or 177Lu-labelled somatostatin analogs. Appl Radiat Isot. 2014;85:28–33.
Decristoforo C, Penuelas I, Patt M, Todde S. European regulations for the introduction of novel radiopharmaceuticals in the clinical setting. Q J Nucl Med Mol Imaging. 2017;61(2):135–44.
Elsinga P, Todde S, Penuelas I, Meyer G, Farstad B, Faivre-Chauvet A, et al. Guidance on current good radiopharmacy practice (cGRPP) for the small-scale preparation of radiopharmaceuticals. Eur J Nucl Med Mol Imaging. 2010;37(5):1049–62.
European Pharmacopoeia, 9th Edition, volume 1: chapter 2.2.66; Detection and measurment of radioactivity, 01/2017.
European Pharmacopoeia, 9th Edition, volume 1: chapter 5; general monograph; Radiophamaceutical preparations, 01/2017.
European Pharmacopoeia, 9th Edition, volume 1: chapter 2.2.46; chromatographic separation techniques, 01/2017.
Garrison WM. Reaction-Mechanisms in the Radiolysis of Peptides, Polypeptides, and Proteins. Chemical Reviews. 1987;87(2):381–98.
European Pharmacopoeia, Edition 2018, Guide for elaboration on monographs on radiopharmaceutical preparations, 2018.
Jay-Gerin JP, Ferradini C. A new estimate of the (OH)-O-center dot radical yield at early times in the radiolysis of liquid water. Chemical Phys Lett. 2000;317(3–5):388–91.
Jonah CD. A Short History of the Radiation-Chemistry of Water. Radiat Res. 1995;144(2):141–7.
Savitzky A, Golay MJE. Smoothing and differentiation of data by simplified least-squares procedures. Anal Chem. 1964;36:1627–39.
Slegers C, Tilquin B. Theoretical approach to the destruction or sterilization of drugs in aqueous solution. Radiat Phys Chemistry. 2005;72(2–3):363–5.
Swiatla-Wojcik D, Buxton GV. On the possible role of the reaction H-center dot+H2O -> H-2+(center dot)OHin the radiolysis of water at high temperatures. Rad Phys Chemistry. 2005;74(3–4):210–9.
Zhang J, Wang Q, Kleintop B, Raglione T. Suppression of peak tailing of phosphate prodrugs in reversed-phase liquid chromatography. J Pharm Biomed Anal. 2014;98:247–52.
