Metabolite profiling with HPLC-ICP-MS as a tool for in vivo characterization of imaging probes
EJNMMI Radiopharmacy and Chemistryvolume 3, Article number: 2 (2018)
Current analytical methods for characterizing pharmacokinetic and metabolic properties of positron emission tomography (PET) and single photon emission computed tomography (SPECT) probes are limited. Alternative methods to study tracer metabolism are needed. The study objective was to assess the potential of high performance liquid chromatography - inductively coupled plasma - mass spectrometry (HPLC-ICP-MS) for quantification of molecular probe metabolism and pharmacokinetics using stable isotopes.
Two known peptide-DOTA conjugates were chelated with natGa and natIn. Limit of detection of HPLC-ICP-MS for 69Ga and 115In was determined. Rats were administered 50–150 nmol of Ga- and/or In-labeled probes, blood was serially sampled, and plasma analyzed by HPLC-ICP-MS using both reverse phase and size exclusion chromatography.
The limits of detection were 0.16 pmol for 115In and 0.53 pmol for 69Ga. Metabolites as low as 0.001 %ID/g could be detected and transchelation products identified. Simultaneous administration of Ga- and In-labeled probes allowed the determination of pharmacokinetics and metabolism of both probes in a single animal.
HPLC-ICP-MS is a robust, sensitive and radiation-free technique to characterize the pharmacokinetics and metabolism of imaging probes.
Biomedical imaging uses exogenous probe molecules that often contain metal ions, metalloids or halogens (Zeglis & Lewis 2011; Blower 2015). Characterization of probe pharmacokinetics and metabolic stability is critical for understanding in vivo performance and to develop improved probes. Current analytical methods for characterizing pharmacokinetic and metabolic properties of positron emission tomography (PET) and single photon emission computed tomography (SPECT) probes are limited. High-performance liquid chromatography (HPLC) with a radioactivity detector is plagued by poor sensitivity; relatively high amounts of radioactivity are required resulting in increased radiation exposure for operators and/or poor peak resolution due to large detector volumes (Roivainen et al. 2013; Beykan et al. 2016). Alternately, HPLC fractions can be collected and analyzed with a well counter for greater sensitivity, but this is time consuming and sacrifices resolution provided by continuous radio-detection. HPLC-mass spectrometry methods can be used with non-radioactive probes, but these involve considerable method development for each probe while the high background of other ionizable components in the biological matrix impedes sensitivity (Simon-Manso et al. 2013; Imbert et al. 2014).
HPLC – inductively coupled plasma mass spectrometry (HPLC-ICP-MS) offers a potential solution to these problems. The extremely high sensitivity of ICP-MS allows for the detection of low quantities of probe and probe metabolites similar to those employed in nuclear medicine (Kotrebai et al. 2000; Jabłońska-Czapla et al. 2014). The high sensitivity of HPLC-ICP-MS allows evaluation of PET and SPECT probes by using their corresponding stable isotopes. Different methods of chromatographic separation (e.g. reverse phase, size exclusion) provide metabolite and pharmacokinetic analysis of both low molecular weight and protein-associated metabolites, while completely eliminating radiation exposure. Furthermore, the mass analyzer scan rate of ICP-MS is fast enough such that multiple elements can be analyzed offering the potential of assessing multiple probes with different elemental labels. Therefore this method can serve as a simple way to simultaneously screen promising lead compounds without the use of radioactive isotope or a radiochemistry laboratory.
64Cu-FBP2 and 64Cu-FBP3 are peptide-DOTA conjugates that differ in peptide structure and were previously evaluated as PET imaging probes for arterial thrombosis (Ciesienski et al. 2013). 64Cu-FBP3 was rapidly metabolized with peptide degradation in vivo, while 64Cu-FBP2 was relatively stable. Here we complexed each of these peptide-DOTA conjugates with Ga and In to give 4 compounds. We expected to observe differences in peptide metabolism and also anticipated that the Ga derivatives would show some transchelation to transferrin or other blood proteins (Dumont et al. 2011; Blasi et al. 2014). With these four compounds we asked: Could HPLC-ICP-MS detect probe concentrations in the range observed in nuclear medicine? Could we distinguish and quantify intact probe, metabolites, and transchelation products in ex vivo blood samples? Could we assess the pharmacokinetic and metabolic behavior of Ga- and In-labeled compounds administered simultaneously?
Ga(DOTA), Tm(DOTP), Cu(cyclam), and Zr(DFO) were prepared using literature protocols. (Viola et al. 2006; Deri et al. 2014; Tasker & Sklar 1975) In brief, 1.5 equivalents of ligand were treated with 1 equivalent of the corresponding metal chloride salt at pH 2.5. Subsequently the pH was increased slowly to 7.4 using 0.1 M NaOH. Iohexol was obtained from Bracco S.p.A. The peptide-DOTA conjugate precursors (Fig. 1) fbp2 and fbp3 were synthesized as previously described (Ciesienski et al. 2013). Purification methods encompassed preparative HPLC purification using a Varian Prostar system with two Prostar 210 pumps and a Prostar 325 UV/Vis detector, using a Phenomenex Luna C18 column (250 × 21.2 mm, 10 μm) using method 1: A-H2O with 0.1% trifluoroacetic acid (TFA) and as mobile phase B-CH3CN with 0.1% TFA. Flow rate of 15 mL/min, 5%B isocratic 0–5 min; 5 to 30% B, 5–11 min; 30 to 75% B, 11–20 min; 75 to 95% B, 20–23 min; 95% B isocratic, 23–27 min. Liquid chromatography-electrospray mass spectrometry (LC-MS) HPLC purity analyses (both UV and MS detection) were carried out on an Agilent 1260 system, using a Phenomenex Luna C18(2) column: 100 mm × 2 mm, 0.8 mL/min flow rate) with UV detection at 220, 254, and 280 nm and +ESI using method 2: A-H2O with 0.1% trifluoroacetic acid (TFA) and as mobile phase B-CH3CN with 0.1% TFA. Flow rate 0.7 mL/min, 0–10 min, 5 to 95% B. fbp2 and fbp3 peptide-DOTA conjugates were synthesized as previously described (Ciesienski et al. 2013; Oliveira et al. 2015).
natGa 2 FBP17. fbp2 ligand (20 mg, 8.7 μmol) was mixed with a solution of Ga(NO3)3 • 6H2O (3 eq.) and the pH of the solution was adjusted slowly to 7.4 and stirred for 18 h. The resulting turbid solution was filtered and purified using preparative HPLC to isolate the bis-gallium complex (8 mg, 3.3 μmol, 37% yield) eluting at 15.3 min. Fractions containing pure complex were pooled, neutralized and lyophilized immediately to prevent complex dissociation. Absence of non-chelated Ga species was assessed using HPLC-ICP-MS. Theoretical MW for C103H142ClGa2N25O29S2: 2432.81. Observed: 1217.9 [M + 2H+]2+.
natIn 2 FBP15. fbp2 ligand (20 mg, 8.7 μmol) was mixed with a solution of InCl3 (3 eq.) and the pH of the solution was adjusted slowly to 7.4 and stirred for 18 h. The resulting turbid solution was filtered and purified using preparative HPLC to isolate the bis-indium complex (6 mg, 2.4 μmol, 28% yield) eluting at 16.1 min. Fractions containing pure complex were pooled, neutralized and lyophilized immediately to prevent complex dissociation. Absence of non-chelated In species was assessed using HPLC-ICP-MS. Theoretical MW for C103H142ClIn2N25O29S2: 2522.76. Observed 1262.9 [M + 2H+]2+.
natGa 2 FBP18. fbp3 ligand (20 mg, 8.5 μmol) was mixed with a solution of Ga(NO3)3 • 6H2O (3 eq.) and the pH of the solution was adjusted slowly to 7.4 and stirred for 18 h. The resulting turbid solution was filtered and purified using preparative HPLC to isolate the bis-gallium complex (4 mg, 1.6 μmol, 18% yield) eluting at 15.7 min. Fractions containing pure complex were pooled, neutralized and lyophilized immediately to prevent complex dissociation. Absence of non-chelated Ga species was assessed using HPLC-ICP-MS. Theoretical MW for C106H141ClGa2N24O30S2: 2513.77. observed 1257.3 [M + 2H+] 2+.
natIn 2 FBP19. fbp3 ligand (20 mg, 8.5 μmol) was mixed with a solution of InCl3 (3 eq.) and the pH of the solution was adjusted slowly to 7.4 and stirred for 18 h. The resulting turbid solution was filtered and purified using preparative HPLC to isolate the bis-indium complex (6 mg, 2.3 μmol, 27% yield) eluting at 15.2 min. Fractions containing pure complex were pooled, neutralized and lyophilized immediately to prevent complex dissociation. Absence of non-chelated In species was assessed using HPLC-ICP-MS. Theoretical MW for C106H141ClIn2N24O30S2: 2559.75. Observed 1280.8 [M + 2H+]2+.
Ga and In transferrin complexes were synthesized using a 1.3 equivalent excess of protein and purification with Zeba™ Spin Desalting Columns (ThermoFisher Scientific), to remove unchelated Ga and In. TBS buffer was prepared by mixing 150 mM NaCl, 50 mM Tris and 5 mM NaHCO3 followed by stirring over chelex overnight and subsequent filtration.
Analytical method development, detection limit and quantification
An Agilent 8800 ICP-MSMS interfaced to an Agilent 1260 HPLC was used. 20% option gas (20% O2, 80% Ar) was added to pyrolyze any carbon deposits on the cones from the HPLC mobile phase while 40% O2 was used as cell gas when conducting reverse phase analysis. HPLC method 3: C18 column (Kromasil 5 μm C18, 250 × 4.60 mm), 0.8 mL/min, mobile phase A (water, 10 mM NaOAc), mobile phase B (90% acetonitrile, 10% 10 mM NaOAc), gradient: min. 0–2: 5% B; min 12: 50% B; min 13: 95% B; min 15: 95% B; min 16: 5% B; min 18: 5% B. HPLC method 4: size exclusion chromatography (SEC) Column (Phenomenex BioSep-SEC-s2000, 300 × 7.80 mm), 1 mL/min, mobile phase TBS, isocratic, 18 min. The SEC column was standardized using a protein marker kit (Sigma-Aldrich, P/N: MWGF1000). Ga(DOTA) and In(DOTA) were used to determine the limit of detection and limit of quantification, and to generate a calibration curve for quantification using RP-separation. Calibration standards of Ga(DOTA) and In(DOTA) ranging from 10 nM to 1 μM were prepared by serial dilution from stocks. 100 μL of each standard was analyzed by direct injection onto the reverse phase HPLC-ICP-MS (HPLC method 3), and the integrals of each metal-FBP peak were recorded. An aliquot of each calibration standard was then digested 1:1 with nitric acid and incubated overnight at 37 °C before being analyzed for its metal concentration by ICP-MS. These metal concentrations were plotted against the previously recorded integrals to generate the metal-FBP calibration plots (Additional file 1: Figure S1). Limits of detection and quantification were calculated using an established method (MacDougall & Crummett 1980).
In vivo experiment
Ga-FBP17, Ga-FBP18, In-FBP15, In-FBP19 (50–150 nmol, with concentrations determined by direct inject ICP-MS) in 0.6 mL sterile PBS were injected either individually or as a mixture of Ga-FBP17/In-FBP15 or Ga-FBP18/In-FBP19 into anesthetized rats via cannulated femoral vein, followed by saline flush. Blood (0.2 mL) was drawn at time points 5, 10, 15, 30 and 60 min post injection via cannulated femoral artery into heparin-containing tubes. Tubes were centrifuged at 2000 g for 10 min to separate the plasma. Plasma was diluted 1:1 with chelex-treated TBS and 100 μL of sample was injected onto the HPLC-ICP-MSMS, scanning for Ga and In at m/z = 69 and 115, respectively. Peaks were integrated and measured against a standard calibration curve.
Multi-element detection capability

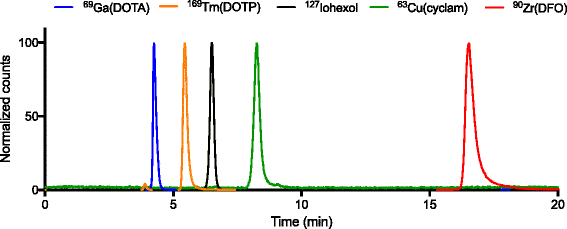

To test the capability of HPLC-ICP-MS for simultaneous detection of different elements from the same sample without significant matrix interference, we carried out simultaneous detection of Ga, Tm, I, Cu and Zr from a single injection mixture of Ga(DOTA), Tm(DOTP), Iohexol, Cu(cyclam), and Zr(DFO). Figure 2 exemplifies the simultaneous detection of different elements relevant for imaging applications from a single injection of a mixture.
Limit of detection and quantification
Additional file 1: Figure S1 shows calibration curves for 69Ga and 115In obtained with Ga(DOTA) and In(DOTA) using reverse phase chromatography. The limit of detection was 0.16 pmol for 115In and 0.53 pmol for 69Ga, while the limit of quantification was 0.46 pmol for 115In and 0.89 pmol for 69Ga (Additional file 1: Table S1).
Reverse phase chromatography analysis of plasma samples
Figure 3a, b shows example traces for blood samples drawn 5, 15 and 60 min post injection of either Ga-FBP18 (A) or In-FBP19 (B) obtained with a C18 column. Both compounds underwent rapid metabolism with at least 4 metabolites readily apparent on the HPLC-ICP-MS chromatograms. On the other hand, Ga-FBP17 and In-FBP15 showed only minimal degradation over time (Additional file 1: Figure S3). The observed metabolic behavior is comparable to what was observed previously for the 64Cu labeled probes (Ciesienski et al. 2013; Oliveira et al. 2015). For simplicity we assigned the metabolites to one of three groups based on their retention times. Figure 3c and d show stacked bar plots as a function of time for Ga-FBP18 and In-FBP19, respectively. The height of the bar gives the total metal concentration in the plasma expressed as percent of injected dose per gram of plasma (%ID/g), and the different colors represent the concentrations of the intact probe and the different metabolite groups. The amount of intact probe as a percentage of total metal ion concentration decreases with time post injection. For Ga-FBP18 the relative amount of metabolite group C (Fig. 3c, Red) increased with time post injection. We speculate that these metabolites, which elute with the shortest retention times are low molecular weight polar fragments. On the other hand the relative amounts of the In-FBP19 metabolites are roughly constant with time suggesting that the rate of metabolism is similar to the rate of clearance of the metabolites.
Figure 4 shows the concentrations of intact Ga-FBP18 (A) and In-FBP19 (B) as a function of time (see Additional file 1: Figure S4 for Ga-FBP17 and In-FBP15). Assuming a monoexponential clearance, the calculated half-lives of the intact complexes were 9.0 min (Ga-FBP17), 4.9 min (In-FBP15), 5.9 min (Ga-FBP18) and 2.7 min (In-FBP19).
Analysis of co-injected compounds
We co-administered Ga-FBP17 with In-FBP15 and Ga-FBP18 with In-FBP19. In both cases, the pharmacokinetics and metabolite profile for the Ga- and In-probes administered to mice as a mixture were similar to that measured for the compounds administered individually. This is demonstrated in Fig. 4 and Additional file 1: Figure S7, where the concentrations represented by the filled symbols indicate data from a single injection and open symbols data from a co-injection.
Size exclusion chromatography analysis of plasma samples
In addition to reverse phase separation, samples were analyzed using SEC to detect transchelation events to plasma proteins (Fig. 5, Additional file 1: Figure S6). For Ga-FBP18, we observed high molecular weight species (70–100 kDa) in addition to low molecular weight metabolites, Fig. 5a. We identified Ga-transferrin as a metabolite by comparison with the retention time for a pure Ga-transferrin standard. Figure 5a also suggests that there may be other Ga-containing species with molecular weights less than transferrin, e.g. serum albumin. Interestingly we did not observe Ga-transferrin or other high molecular weight species when Ga-FBP17 was administered. The Ga-FBP17 result suggests that transchelation may be enhanced once the intact probe is degraded by proteases. For In-FBP19 injection (Fig. 5b), we did not identify In-transferrin in the plasma samples, but only observed the formation of low molecular weight degradation products.
The goal of this study was to assess the potential of HPLC-ICP-MS to characterize the metabolic behavior of imaging probes. A key question was whether we could detect probes at concentrations found in nuclear imaging studies. Previous nuclear imaging studies with fibrin binding peptides utilized a probe dose of about 1 nmol peptide. For fibrin binding peptides, 1–2% ID/g is typically observed in the blood a few minutes post injection, and with the sub-picomole limits of quantification determined here, HPLC-ICP-MS can quantify intact probe and metabolites at <0.1 %ID/g.
Each analysis run is preceded by a series of calibrant samples of varying concentration to generate a calibration curve. We used Ga(DOTA) and In(DOTA) complexes to avoid using large quantities of of peptide conjugate analyte for repeated calibration test runs and provide a generalizable protocol that allows for the quantification of any metabolite/ tracer molecule with the same calibrant. For ICP-MS analysis, (opposed to other MS methods), the metal ion is being quantified and not the intact molecule (or a fragment). Once the compound is nebulized onto the torch, the high temperature plasma combusts the sample to the atomic state. Thus although the DOTA complexes were used, the Ga/In ion rather than the complex is detected. Differences in ionization in the plasma can be further corrected by the use of an internal standard.
In order to look at metabolism in more detail, we employed a dose of ~100 nmol which allowed us to quantify metabolites down to 0.001 %ID/g. We selected two fibrin targeting peptide-chelator conjugates with known differential metabolic behavior and their corresponding gallium and indium complexes to test this methodology. Reverse phase and size exclusion chromatography revealed a wealth of metabolic information among the four probes tested. Moreover the metabolic profiles varied between the Ga- and In-labeled versions of the same peptide conjugate as has been seen in other systems (Blasi et al. 2014; Oliveira et al. 2015).
The ICP-MS detector offers many advantages over radiochemical detection. No radiation is required and the lack of radioactive decay means the samples can be frozen and analyzed at a later date if needed. Radiochemical detection requires relatively high amounts of activity for in-line detection, or samples can be collected and analyzed in a well counter, which decreases throughput and chromatographic resolution. Another attractive feature of ICP-MS is the ability to detect multiple mass labels nearly simultaneously. We showed here that Ga and In labeled probes could be co-injected and the plasma analyzed for metabolites. One could readily expand to using stable isotopes of the wide range of radionuclides used in nuclear medicine: Cu, Ga, In, I, Br, Al (for Al-F labeled probes), Zr, Lu, Y, Re, Bi, Sc, etc. In our example, we used peptides with the same chelator, but other combinations of peptide/chelator/label could be used.
There are some limitations to this work. We resolved some metabolites but no doubt more peaks could be resolved with further method development. However, the goal of the study was to assess the potential use of HPLC-ICP-MS to examine pharmacokinetics and metabolism of probes used in nuclear imaging, which we were able to do successfully. Similarly, identification of the individual metabolites was not attempted but this could be done with subsequent LC-MS-MS experiments. Additionally, incorporation of detection of radioactive species in tandem with the HPLC-ICP-MS system would provide an additional ideal validation step to compare retention times of radioactive and non-radioactive species. We used a standard HPLC, but a capillary HPLC would be expected to enable a much lower limit of quantification with very small sample volume required.
We demonstrated that HPLC-ICP-MS is a useful method to screen imaging probes labeled with non-radioactive isotopes for pharmacokinetics and metabolism. Different columns (e.g. reverse phase and/or size exclusion) can provide a wealth of metabolic and transchelation information from small plasma sample volumes. The ability to detect multiple labels simultaneously allows the injection of multiple probes into the same animal thereby reducing animal numbers and rapidly identifying probes that may have suitable pharmacokinetic/metabolic behavior for further development.
1,4,7,10-Tetraazacyclododecane-1,4,7,10-tetra(methylene phosphonic acid)
Fibrin binding peptide
High performance liquid chromatography inductively coupled plasma mass spectrometry
Liquid chromatography mass spectrometry
Positron emission tomography
Size exclusion chromatography
Single photon emission computed tomography
Beykan S, Dam JS, Eberlein U, Kaufmann J, Kjærgaard B, Jødal L, et al. 177Lu-OPS201 targeting somatostatin receptors: in vivo biodistribution and dosimetry in a pig model. EJNMMI Res. 2016;6:1–9.
Blasi F, Oliveira BL, Rietz TA, Rotile NJ, Day H, Looby RJ, et al. Effect of chelate type and radioisotope on the imaging efficacy of 4 fibrin-specific PET probes. J Nucl Med. 2014;55:1157–63.
Blower PJ. A nuclear chocolate box: the periodic table of nuclear medicine. Dalton Trans. 2015;44:4819–44.
Ciesienski KL, Yang Y, Ay I, Chonde DB, Loving GS, Rietz TA, et al. Fibrin-targeted PET probes for the detection of thrombi. Mol Pharm. 2013;10:1100–10. https://doi.org/10.1021/mp300610s.
Deri MA, Ponnala S, Zeglis BM, Pohl G, Dannenberg J, Lewis JS, et al. Alternative chelator for 89Zr radiopharmaceuticals: radiolabeling and evaluation of 3, 4, 3-(LI-1, 2-HOPO). J Med Chem. 2014;57:4849–60.
Dumont RA, Deininger F, Haubner R, Maecke HR, Weber WA, Fani M. Novel 64Cu- and 68Ga-labeled RGD conjugates show improved PET imaging of ανβ3 Integrin expression and facile Radiosynthesis. J Nucl Med. 2011;52:1276–84.
Imbert L, Dulaurent S, Mercerolle M, Morichon J, Lachâtre G, Gaulier J-M. Development and validation of a single LC–MS/MS assay following SPE for simultaneous hair analysis of amphetamines, opiates, cocaine and metabolites. Forensic Sci Int. 2014;234:132–8.
Jabłońska-Czapla M, Szopa S, Grygoyć K, Łyko A, Michalski R. Development and validation of HPLC–ICP-MS method for the determination inorganic Cr, as and Sb speciation forms and its application for Pławniowice reservoir (Poland) water and bottom sediments variability study. Talanta. 2014;120:475–83.
Kotrebai M, Birringer M, Tyson JF, Block E, Uden PC. Selenium speciation in enriched and natural samples by HPLC-ICP-MS and HPLC-ESI-MS with perfluorinated carboxylic acid ion-pairing agents. Analyst. 2000;125:71–8.
MacDougall D, Crummett WB. Guidelines for data acquisition and data quality evaluation in environmental chemistry. Anal Chem. 1980;52:2242–9.
Oliveira BL, Blasi F, Rietz TA, Rotile NJ, Day H, Caravan P. Multimodal molecular imaging reveals high target uptake and specificity of 111In-and 68Ga-labeled fibrin-binding probes for thrombus detection in rats. J Nucl Med. 2015;56:1587–92.
Roivainen A, Kähkönen E, Luoto P, Borkowski S, Hofmann B, Jambor I, et al. Plasma pharmacokinetics, whole-body distribution, metabolism, and radiation dosimetry of 68Ga bombesin antagonist BAY 86-7548 in healthy men. J Nucl Med. 2013;54:867–72.
Simon-Manso Y, Lowenthal MS, Kilpatrick LE, Sampson ML, Telu KH, Rudnick PA, et al. Metabolite profiling of a NIST standard reference material for human plasma (SRM 1950): GC-MS, LC-MS, NMR, and clinical laboratory analyses, libraries, and web-based resources. Anal Chem. 2013;85:11725–31.
Tasker P, Sklar L. Crystal and molecular structure of di (perchlorato)(1, 4, 8, 11-tetraazacyclotetradecane) copper (II). Cu (cyclam)(ClO 4) 2. J Chem Crystallogr. 1975;5:329–44.
Viola NA, Rarig RS, Ouellette W, Doyle RP. Synthesis, structure and thermal analysis of the gallium complex of 1, 4, 7, 10-tetraazacyclo-dodecane-N, N′, N ″, N‴-tetraacetic acid (DOTA). Polyhedron. 2006;25:3457–62.
Zeglis BM, Lewis JS. A practical guide to the construction of radiometallated bioconjugates for positron emission tomography. Dalton Trans. 2011;40:6168–95.
This work was supported by in part by grant a grant from Agilent Technologies. Dr. Amir Liba of Agilent is kindly acknowledged for useful discussions regarding this work. Dr. Ilknur Ay is acknowledged for assistance with rat metabolite studies.
This study was funded by the National Heart, Lung, and Blood Institute (R01HL109448, K99HL125728) and Agilent Technologies (ACT-UR 3823). Peter Caravan has equity in Factor 1A, LLC, the company holding the patent rights to the peptide used in this work. No other potential conflict of interest relevant to this article was reported.
Availability of data and materials
Supporting information is provided in addition to data presented in the main manuscript portion, detailing characterization data for peptide synthesis, additional chromatograms, and quantifications from experiments detailed in the main portion of the manuscript.
All applicable international, national, and/or institutional guidelines for the care and use of animals were followed. This article does not contain any studies with human participants performed by any of the authors.
